XIAO 0.96-inch IPS Display

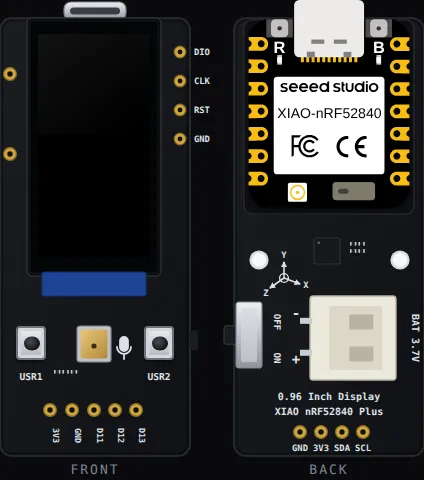

The board as it appears on the Velxio canvas, with its full pin map read live from the simulator (regenerated by scripts/gen-boards.mjs, so it always matches what you can wire).

Family: Pro boards · Languages: Arduino C++

About this board

Seeed’s smallest display gadget: an ST7789 80 x 160 IPS panel on a carrier with a pre-soldered XIAO nRF52840 Plus, two user buttons (USR1 on D6, USR2 on D7), a 6-axis IMU and a battery connector. The canvas shows the board front and back; the glass is the emulated controller’s frame memory, filled by whatever the sketch sends over SPI, and the buttons are clickable.

Drive the panel with Seeed_GFX2, which the board declares for you. Tilt the board and set the battery level from Sensors on the canvas toolbar. The PDM microphone and the I2S pads are not modelled.

Start here

• GraphicTest — Seeed’s ten drawing primitives, timed on the serial monitor.
• Electronic Quicksand — sand that follows the Tilt pad, through the on-board IMU.
• Battery status — Seeed’s battery demo; drag the slider down a tenth of a volt.

Pins (11)

• GND
• 3V3
• SDA
• SCL
• 5V
• GND.1
• 3V3.1
• GND.2
• D11
• D12
• D13

Every pin above is clickable on the canvas — click one to start a wire. Board-level behavior, quirks and example links live on the family page.
